Wiring Planner Help

Conductor Attach Points

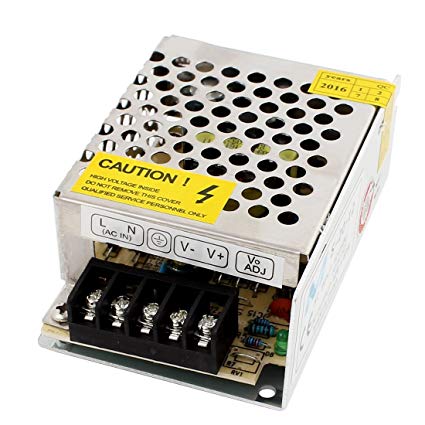

Conductor Attach Points may be added to black boxes to provide a point at which a conductor may be attached to it without the need of a mating connector. An example of a conductor attach point is a screw terminal, as shown in the image below.

See Adding Conductor Attach Points
