A Project is a collection of all the objects required to represent a Wiring Project.


It can consist of one or a collection of any of the following objects which are contained in the Project's Model.


 Folder

 Black Box

 Connector

 Contact

 Multi-axial Contact

 Connection

 Shield

 Conductor

 Twist

Conductor Attach Point

   Terminal

   Cable

 Cable Assembly

 Aggregator

Passive Component

Signal

Tool

Attachment

 Accessory

Diagram

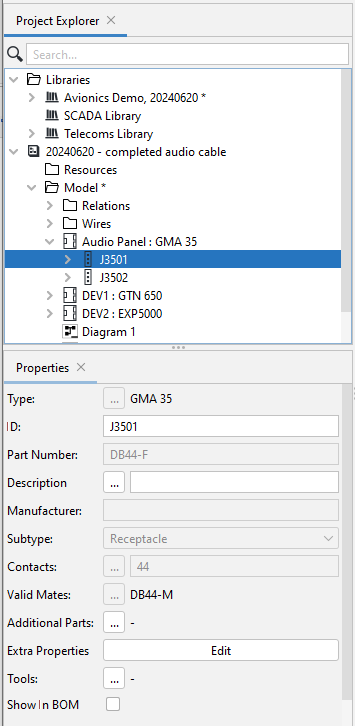

A Project is represented in the Project Explorer as in this example:


:

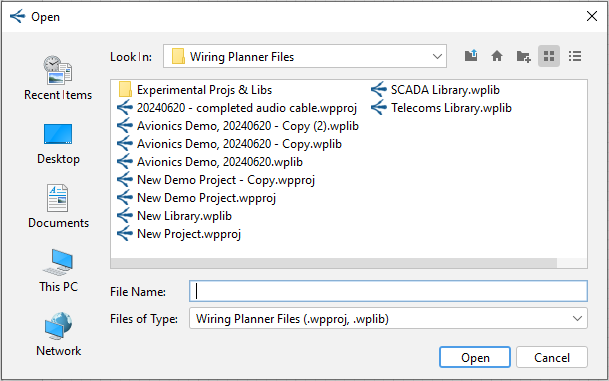

One or more Projects can be loaded and opened into the Projects Explorer Panel.


[Note that the file extension of a Project is *.wpproj].
