A Symmetric is a connector subtype

  • That mates with another instance of itself. An example of a symmetric connector is shown below.
  • Whose symbol is a rectangle.
  • Whose valid mates are symmetrics.
  • Whose instances have the default ID 'P#' where # is an integer value.

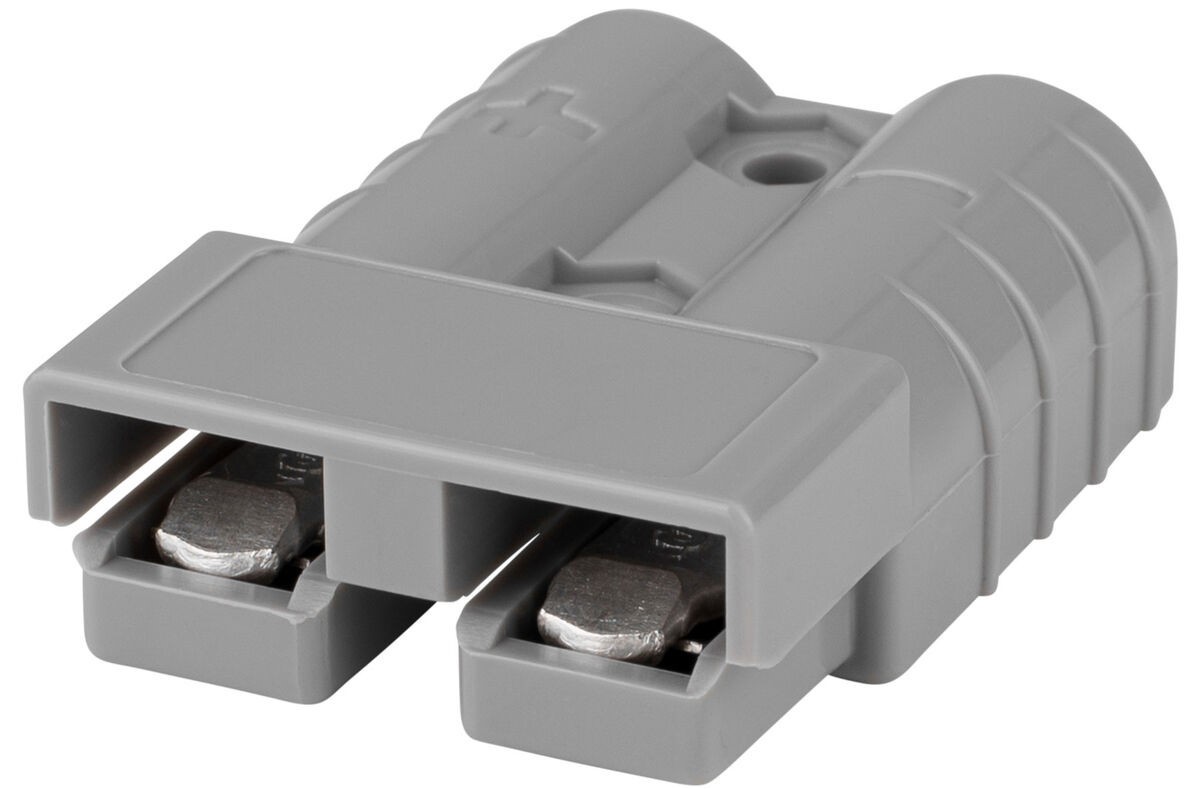

Here is an  an example of a symmetric connector:



______________________________________________________

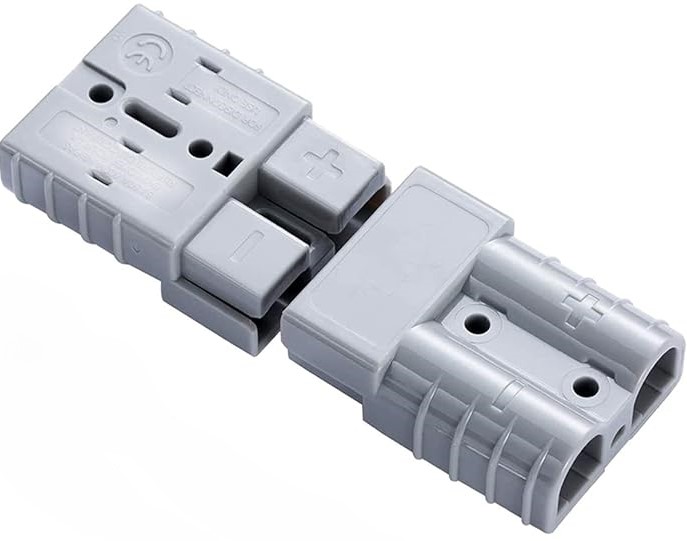

Example of a matched pair of symmetric connectors:
