A libraryBlack Box may be instantiated in a Project in one of the following ways:


  1. Drag the Library Black Box to the project's Model folder..

or

  1. Drag the Library Black Box onto a Project Diagram.  An instance of theBlack Box is is automatically created in the Project Model.

or

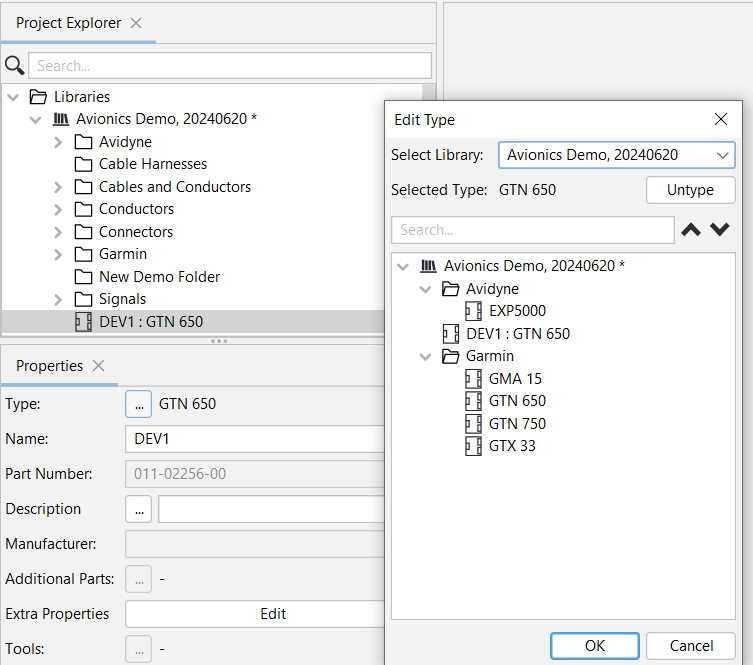

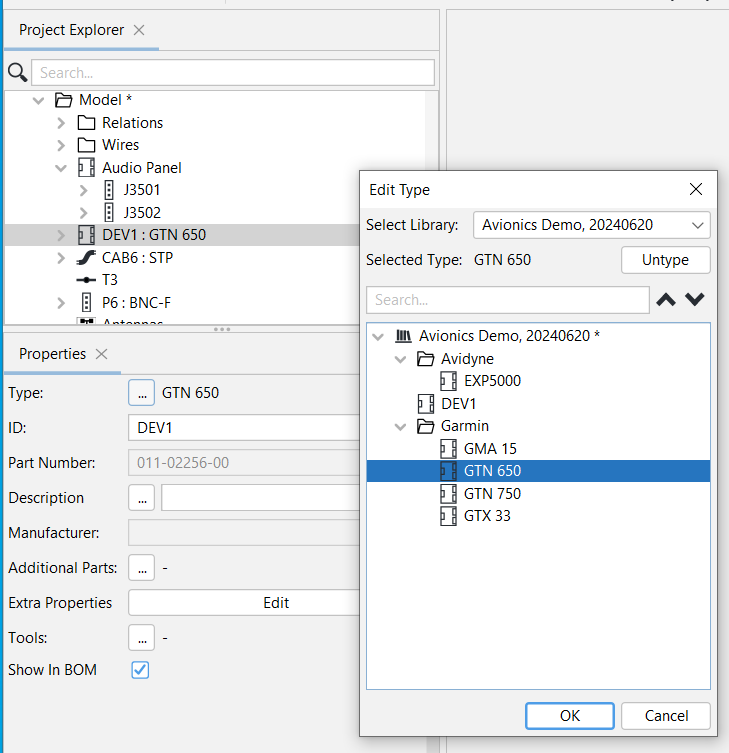

  1. Right-click the Model folder or a subfolder, click Add, selectBlack Box. Then In the Properties Panel, click the ... icon next to the Type property and select the LibraryBlack Box to be instantiated.



Using any of the above methods, the Black Box will appear in the Model with a default ID of DEV#, where # is a sequential number.


The instance will inherit all the attributes of the Library Black box (the "type").




Related Topics:


Copies and/or Instances of an Object
