A Library Conductor may be instantiated in a Project in one of the following ways:


  1. Drag the Library Conductor to the project's Model folder

or

  1. Drag the Library Conductor onto a Project Diagram.   An instance of the Conductor is automatically created in the Project Model.

or

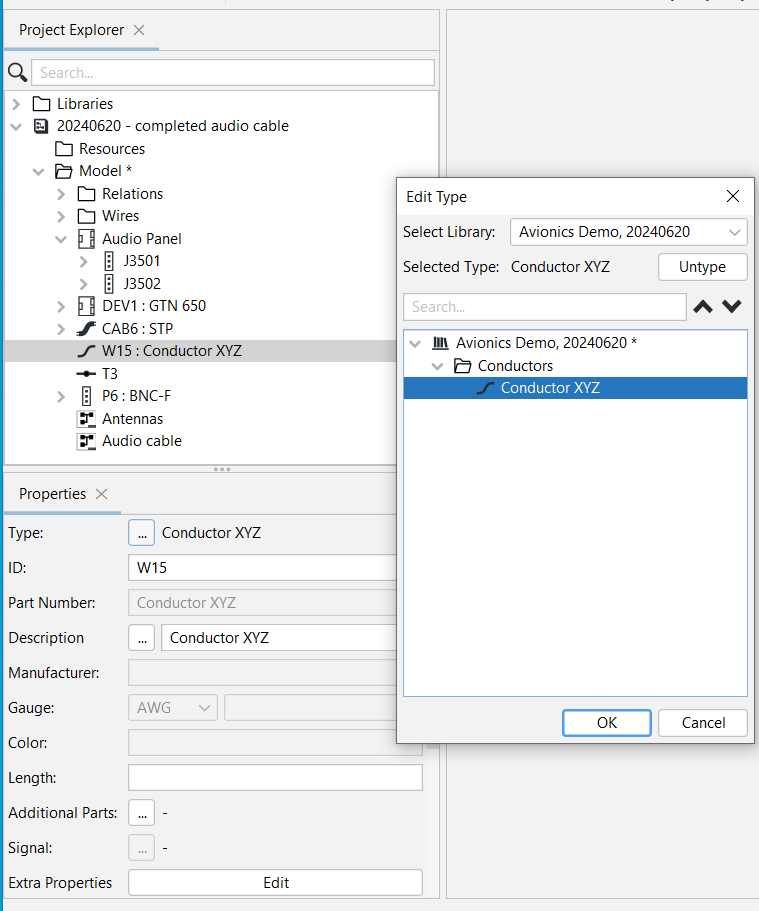

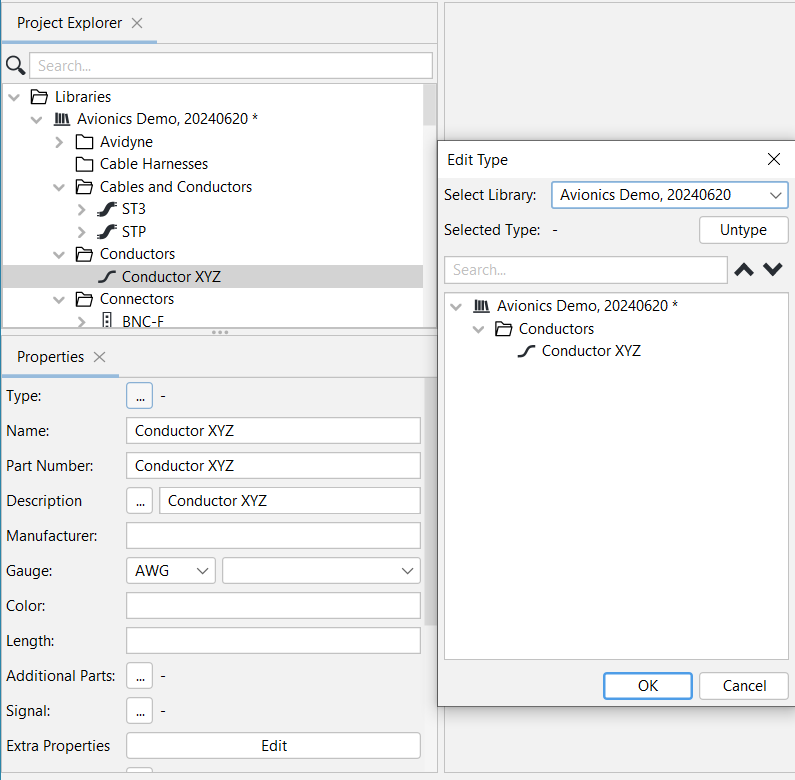

  1. Right-click the Model folder or a subfolder, click Add, select Conductor. Then In the Properties Panel, click the ... icon next to Type and then select the Library Conductor to be instantiated.



Using any of the above methods, the Conductor will appear in the model with a default ID of W#, where # is a sequential number.


The instance will inherit all the attributes of the library Conductor (the "type").
