A library connector may be instantiated in a Project in one of the following ways:


  1. Drag the Library connector to the project's Model folder.

or

  1. Drag the Library connector onto a Project Diagram.  An instance of connector is then automatically created in the Project Model.

or

  1. Right-click the Model folder or a subfolder, click  Add, select connector.

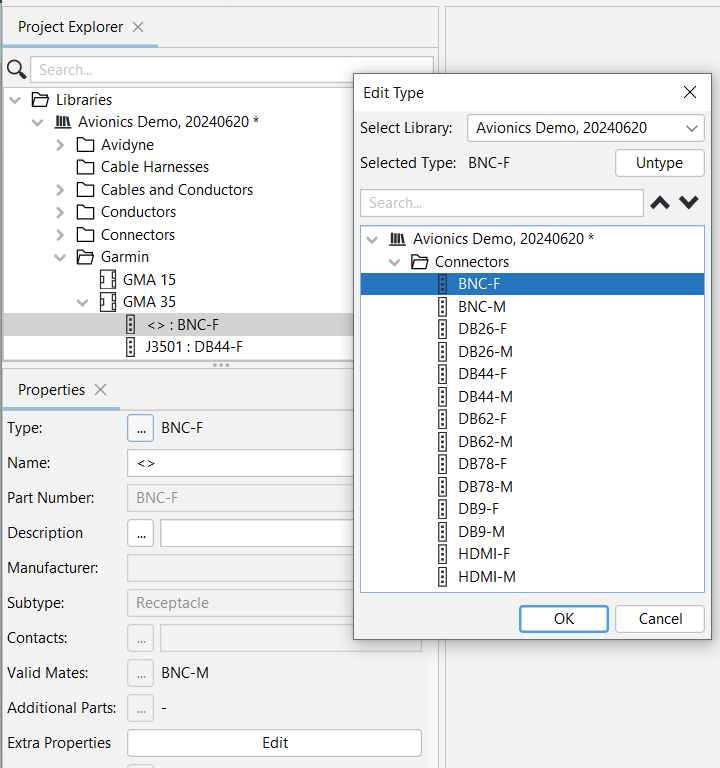

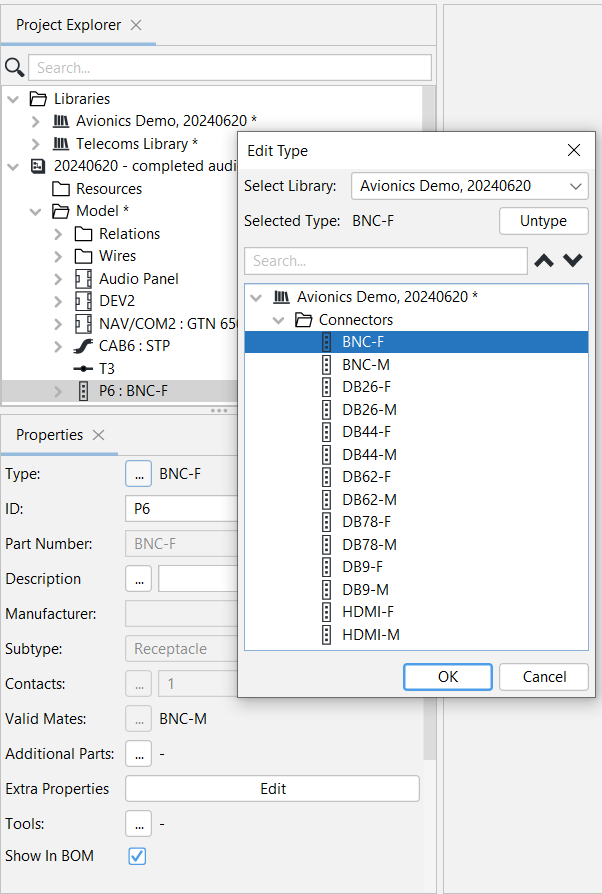

Then In the Properties Panel, click the ... icon next to Type and then select the Library connector to be instantiated from the applicable library selected from the list of available libraries.



Using any of the above methods, the connector will appear in the model with a default ID of P# or J#, where # is a sequential number.


The instance will inherit all the attributes of the library connector (the "type") that was selected.


.
